Wide Wall Chambers

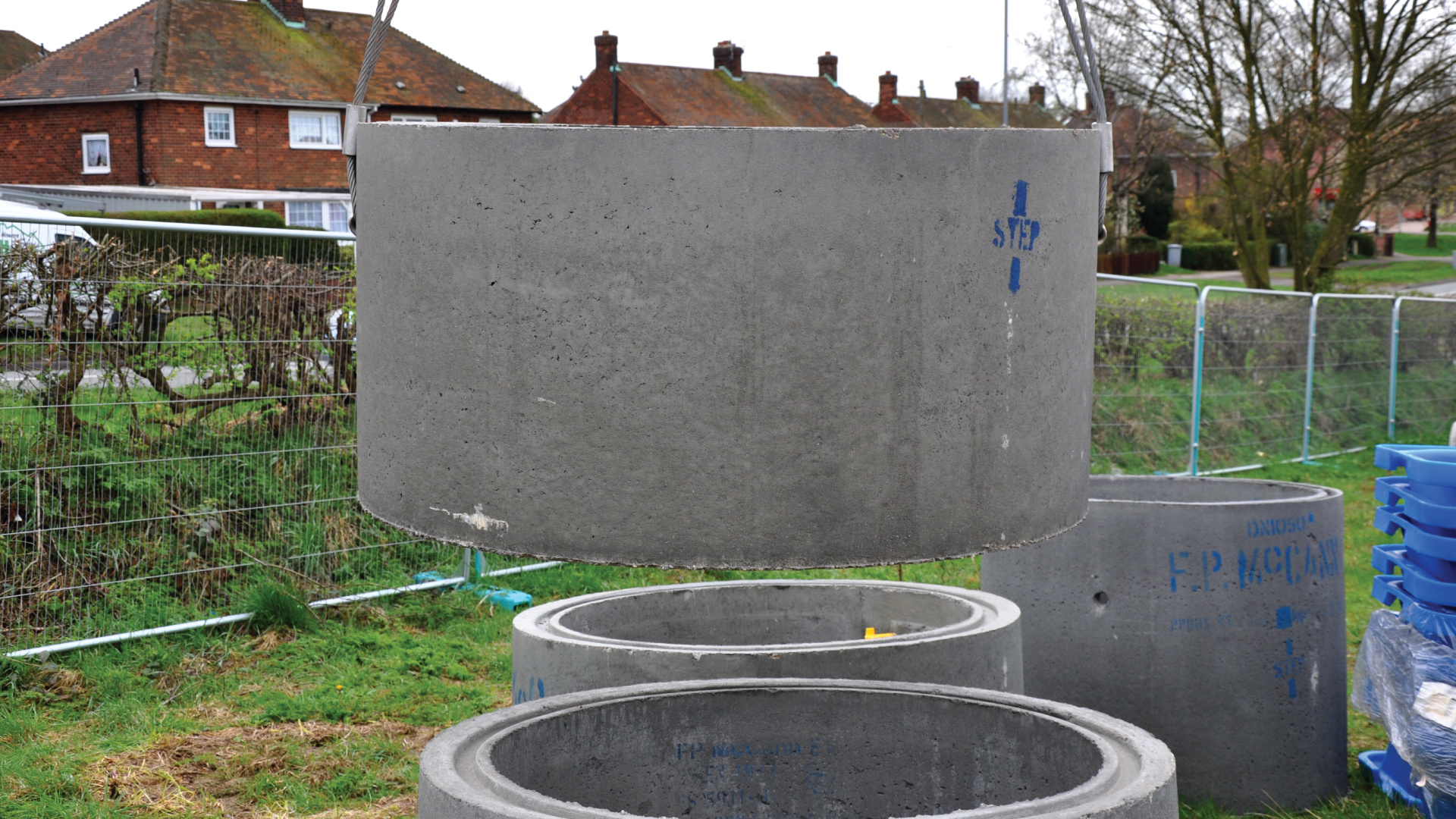

FP McCann’s precast concrete wide wall manholes have been designed with a tongue and groove dimension to accommodate the use of bituminous sealant.

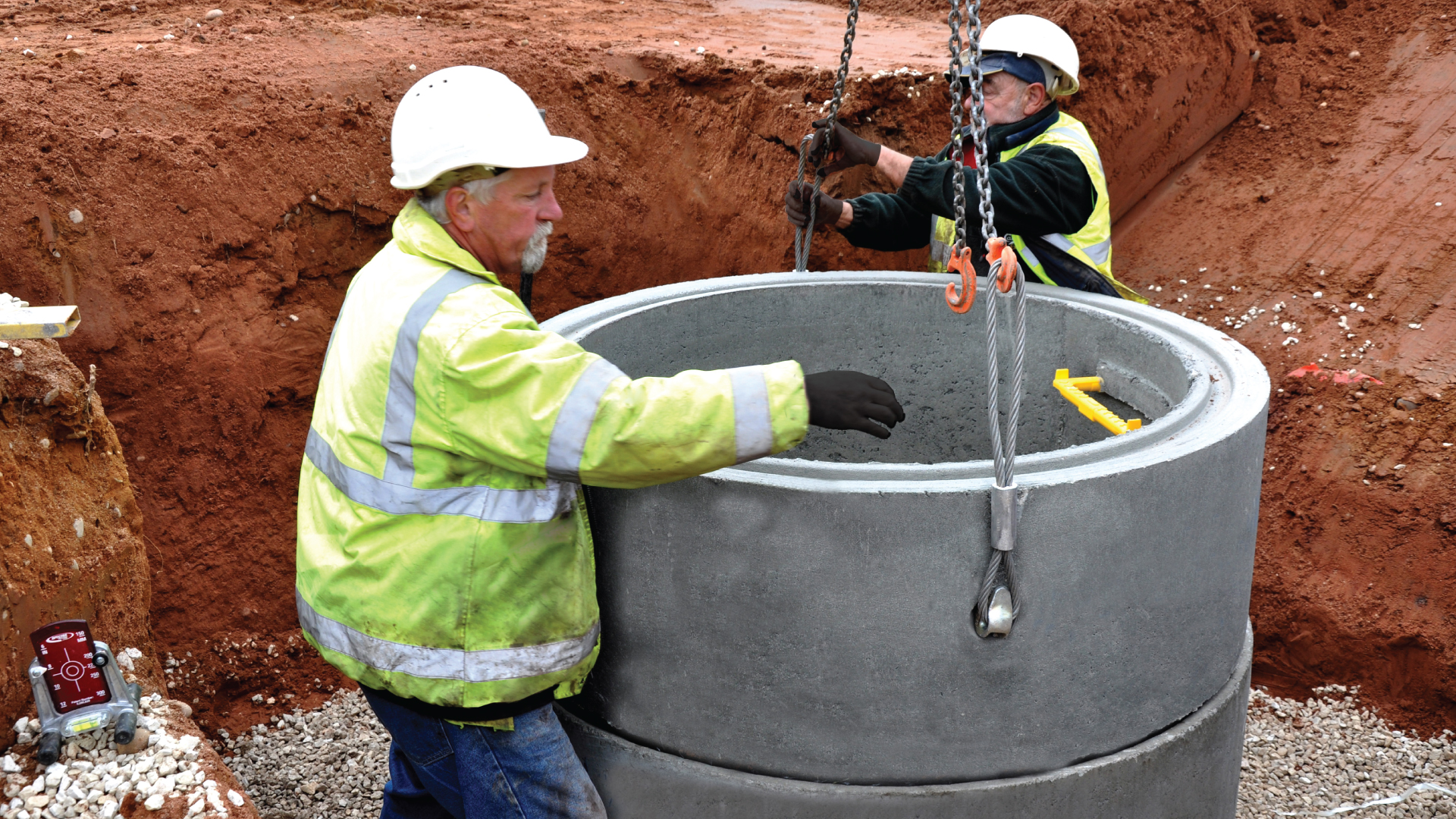

FP McCann’s approved sealant should be used at all times. The sealant requirements for wide wall manholes is 12mm x 120mm x 6m. When placing the sealing strip into position during installation, the ends of the strips must be overlapped by a minimum of 30mm and cut at an angle of 60°. The cut ends must then be pressed together. Full installation guidelines can be provided upon request or found in the downloads section to the left.
| Product | Type | Factory Locations | Cast Type | Standard | Tolerances | Testing | EPD Information | Lead Time | Haulage Requirements | Off Loading /Handling | Installation |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Wide Wall Manholes | Standard | Knockloughrim & Ellistown | Dry Cast | Drainage Standards | Manhole and Slab Tolerances | Drainage Testing | Wide Wall Chambers EPD | Stock | Flat Bed | Deha Clutches and Chains | Drainage Installation Guidance |
